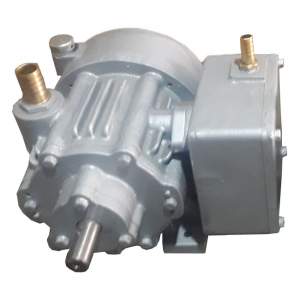

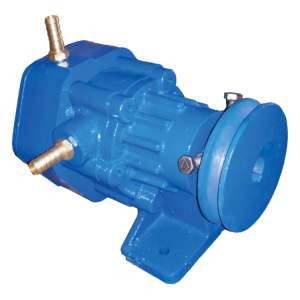

Milking Machine Vacuum Pump

Milking Machine Vacuum Pump which are known for their compact design, reliability and efficient performance, have earned an enviable reputation in a short time. Manufactured with excellent quality raw materials, under the able surveillance of proficient engineers, these pumps are an ideal choice Milking Machine. Our vast after-sales network does ensure trouble-free and ready availability of after-sales services.

Milking Machine Vacuum Pumps are of oil lubricated vane type. The main assembly of the pump comprises of the stator and a rotor mounted in it. Depending upon the model the rotor is fitted with either 4,6, 8 specially treated fiber vanes which are diametrically opposed to each other and are duly held in rotor slots. When the rotor is made to rotate with the aid of the connected electric motor these vanes move in and out the slots by centrifugal force and slide against the stator walls of the stator pushing thereby the trapped air out of the stator and prompting the atmospheric air to gush in spontaneously to fill in the empty space. This continuous process happening at a high speed gives rise to an unbreakable stream of vacuum and pressure. Oil circulation system is so designed that after providing lubrication to all the vital components of the pump, it travels ahead without contaminating the air and gets automatically collected in its original chamber, ready once again, for re-circulation. Quite a little quality of oil is required for this purpose and if perchance the oil is not replenished in time, it won’t affect the smooth running of the pump at least for some time.

Built-in air filters-cum-noise absorbers provided on both the vacuum and pressure lines are designed with special emphasis to save the pump from dust and also to help in function noiselessly, ensuring thereby continues the supply of oil-free vacuum and compressed air. The temperature of the pump is successfully controlled to the bare minimum, as the unit is a fan cooled one.

Milking Machine Vacuum Pump Features :

• High pumping speed over the range of absolute pressure
• Seamless finish ensures resistant to corrosion
• Designed to achieve maximum vacuum in a very short time
• Sturdy design with dimensional accuracy
• Precisely engineered with hassle-free performance
• Accurate in specifications that ensures easy installation
• Suitable for noiseless and trouble free performance
• Sturdy construction and fine finish

Product Specification
